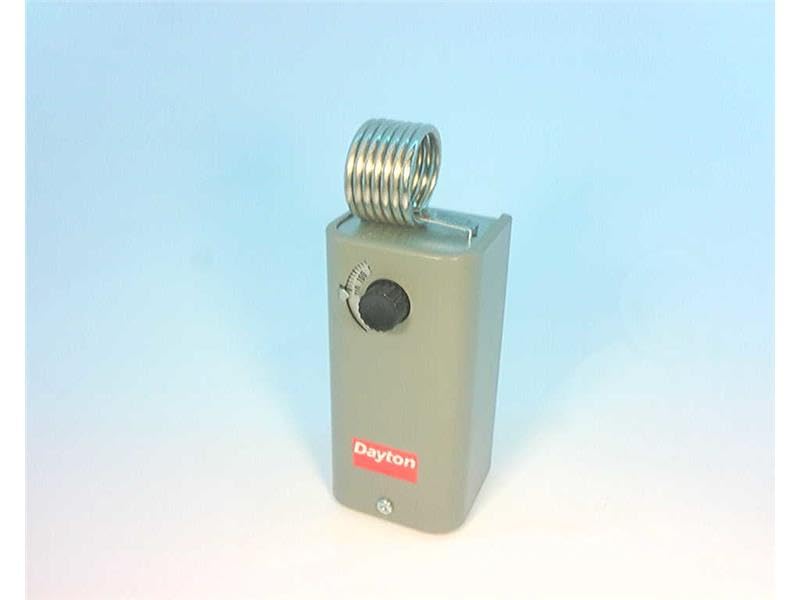

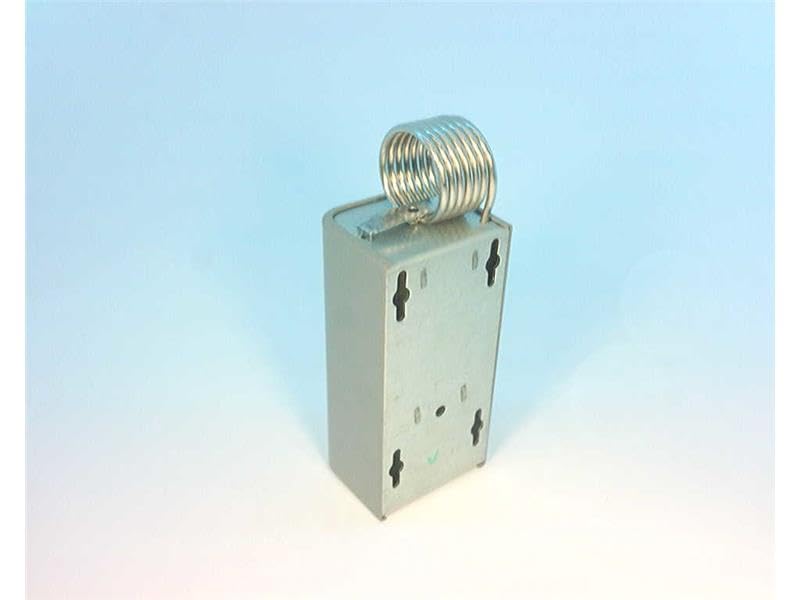

Line Voltage Mechanical Thermostat for 2-Stage Heating or Cooling, 24 to 600VAC
$97.16
Sale price
$97.16
Regular price
Skip to product information
Versatile heating/cooling unit is designed with stainless steel sensing elements that can handle corrosive conditions. Can be easily mounted to a standard 2" x 4" vertical box and include a SPDT switch. Analog display.
Item: Line Volt Mechanical Tstat
Thermostat Switch Type: SPDT
Thermostat Control Range: 30 Degrees to 110 Degrees F
Thermostat Voltage: 24 to 600VAC
Full Load Amps @ 120VAC: 16A
Full Load Amps @ 240VAC: 8A
Thermostat Programmable: No
Remote Sensing Capability: No
Thermostat Heating/Cooling: Heating/Cooling
Thermostat Item: Line Voltage Mechanical Thermostat
Remote Sensing Bulb Included: No
Switch Action: Open/Close on Rise
Number of Switches: 1
Differential: 3.5 Degrees F
Height: 5-3/4"
Width: 2-1/4"
Depth: 2-1/4"
Temp. Sensitivity: 3 Degrees
Sensor Type: Hydraulic Cap
Color: Gray
Enclosure Type: STEEL
Inductive Amps @ 120V: 16A
Inductive Amps @ 240V: 8A
Locked Rotor Amps @ 120V: 96A
Locked Rotor Amps @ 240V: 48A
Contact Rating Resistive @ 120V: 22A
Contact Rating Resistive @ 240V: 22A
Pilot Duty Contacts (VA): 125VA
Standards: UL, CUL
